Trailer Dropsider Tailboard Weld on Fastener Kit Forket Shaft and Pin

This listing is for a complete tailboard fastener kit including two weld on forkets, two tailboard lugs and two round cotter pins. Industrial grade heavy duty steel ideal for commercial and agricultural use. Commonly used for dropside trailers, tipper trailers, trucks and horseboxes. Heavy duty weld on fastening plates. Traditional weld on design ideal for heavy duty applications. Round pins with tapered tips to allow for easy location in the forket. Cotter pin chains allow for the mounting of the pins directly to the trailer chassis. Specifications Forket 55mm total length 35mm width 50mm depth Designed for use with 20mm tailboard shafts Pre drilled to accept 10mm retaining pins Tailboard shaft 140mm length 35mm width 38mm usable shaft length 20mm diameter Zinc plated cotter pin 110mm total pin length 75mm max usable length 40mm pull ring 200mm of chain

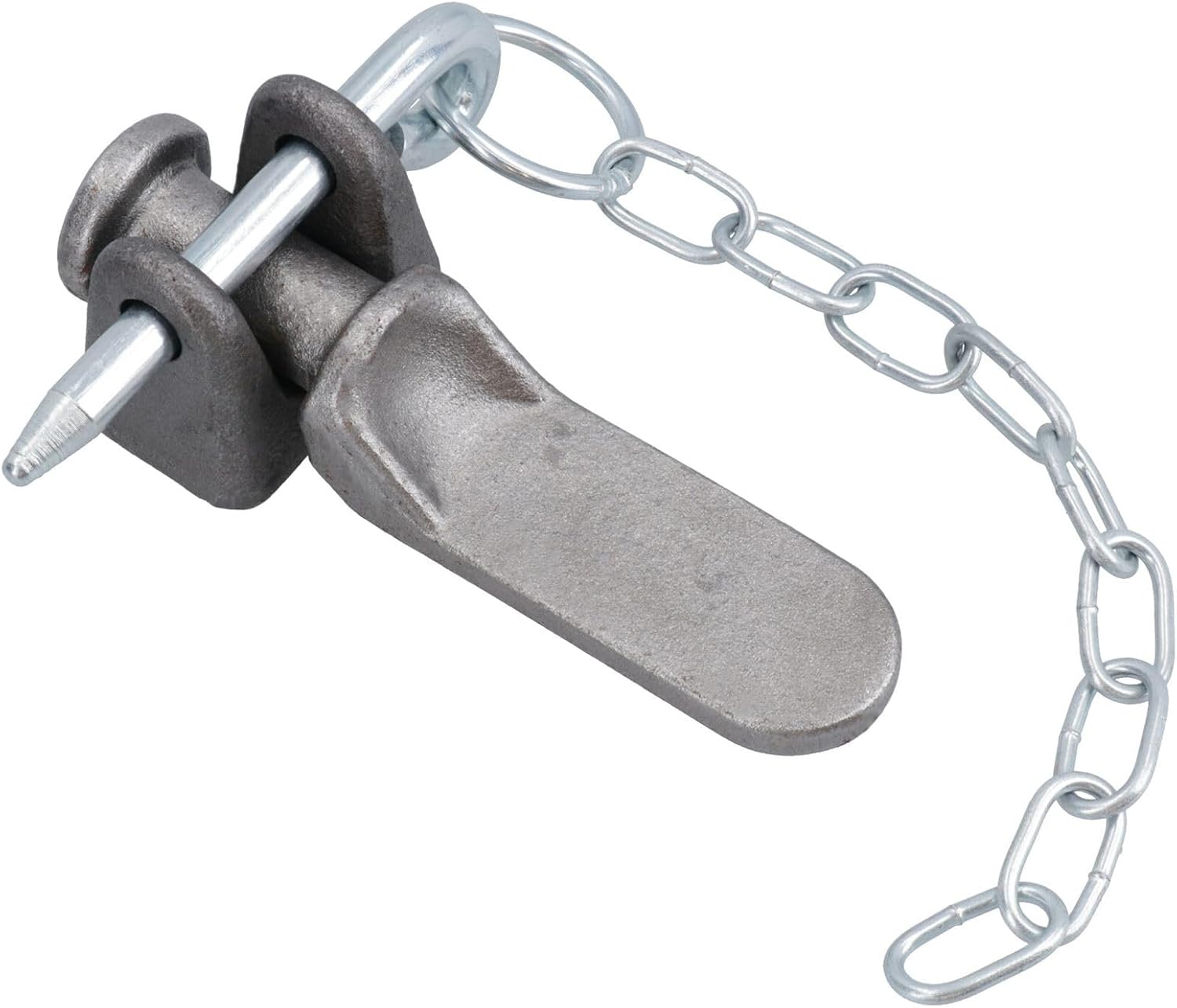

• Dropside fastener kit
• Ideal for use on trailers, trucks and horseboxes
• Self Colour forket and with 19mm shaft
• Cotter pins supplied with chains to fasten to chassis
• Tapered pin ends for easy location
